IE3/IE4 high output power Motors are manufactured with new material, new process and new standard. The motors stand out for high efficiency, low noise and low vibration.This series motors can be widely use in various kinds of general use machinery like fans, pumps, machine tools, compressors, transportation equipment and so on, and can also be used in the hazardous areas like oil, chemical, steel paints, and mining industry.

Send Inquiry

Product Description

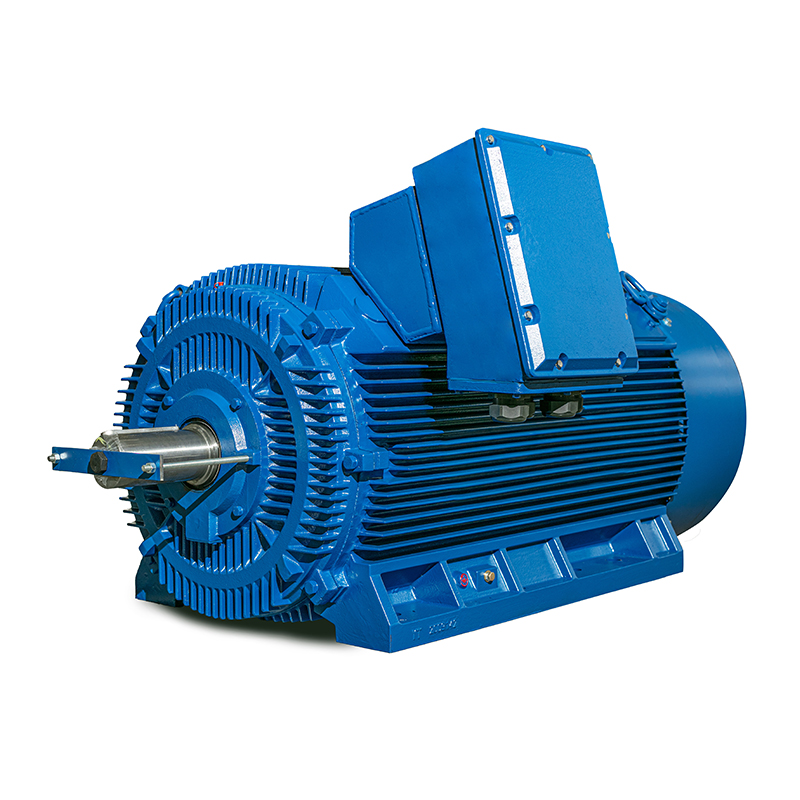

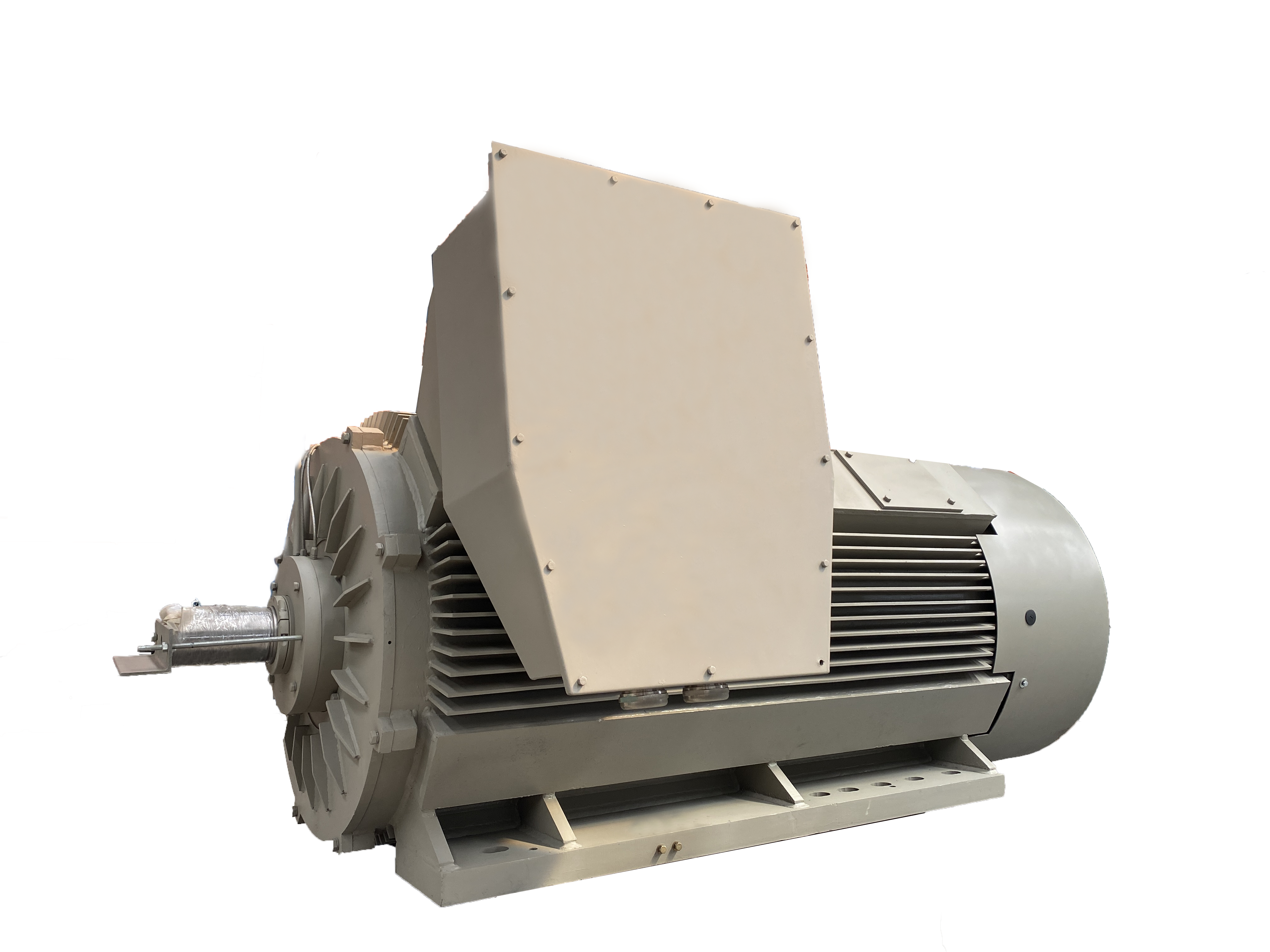

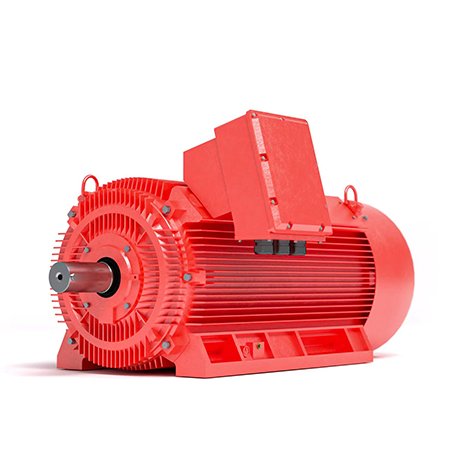

Y3 series low voltage and high power three-phase induction motor are totally enclosed fan cooled squirrel cage motors.

Standard	IEC60034
Frame size	355X-450X
Output	220kW-1000kW
Voltage / Frequency	≤1000V / 50Hz, 60Hz
Protection degree	IP55 / IP56 / IP65 / IP66
Insulation / Temp Rise Class	F / B
Mounting arrangements	IM B3 / IM B5 / IM B35 / IM V1
Ambient temperature	-15°C to +40°C
Relative Humidity	Less than 90%
Altitude	Less than 1000 meters
Cooling method	IC411 / IC416
Duty	S1
Service factor	1.0

Ordering Requirements

Please specify motor type, power, voltage, speed, insulation class, protection class, and mounting type when ordering.

Custom Engineering

We design and produce special motors including special voltage/frequency, high/low temperature variants, and plateau-specific models.

Available Special Configurations:

■ Special insulation and protection classes.

■ Left-side terminal box, double shaft ends, or special shafts.

■ Higher power ratings or special service factors.

■ Integration of heaters, PT100 for bearings/windings, or PTC sensors.

■ Encoders, insulated bearings, or insulated bearing structures.

* This catalogue is for reference only. Product changes may occur without advance notice.

Frequently Asked Questions

What is the output range of Y3 series motors?

The Y3 series high power motors offer an output range from 220kW up to 1000kW.

Which international standards do these motors meet?

These induction motors are manufactured in compliance with the IEC60034 standard.

Can these motors be used in outdoor or high-altitude environments?

Yes, we can design specialized motors specifically for use in outdoor environments or on high-altitude plateaus (above 1000 meters).

What cooling methods are available?

Standard cooling methods include IC411 and IC416, ensuring efficient thermal management for heavy-duty operation.

Are custom protection ratings available?

Yes, while standard options range from IP55 to IP66, we can provide special protection classes according to customer requirements.

What types of thermal protection can be added?

Motors can be equipped with heaters, PT100 sensors for both bearings and windings, and PTC thermistors for comprehensive protection.
