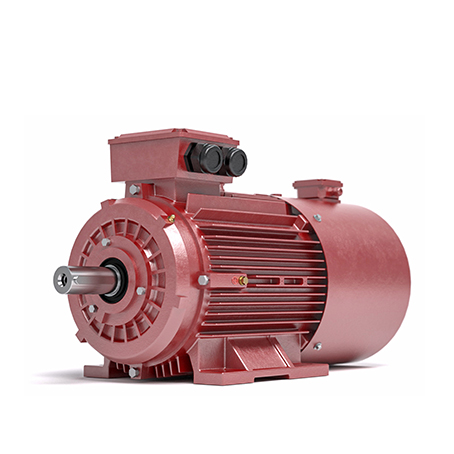

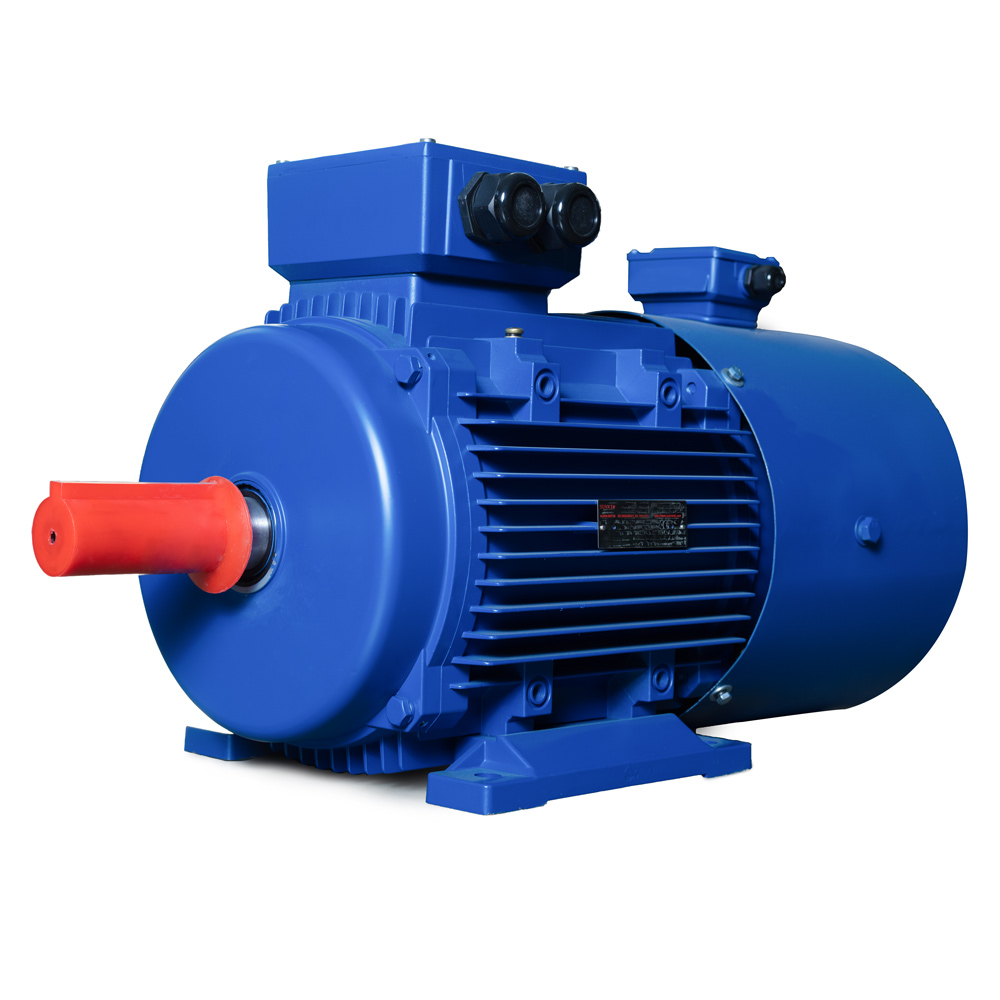

OEM YVF Converter-Fed Motors Suppliers, Exporter

YVF series motors use squirrel-cage rotor structure and stand out for reliable operation and easy maintenance. Together with the variable frequency inverters, the motor system can realize a range of speed adjustment which can save energy and achieve automatic controlling. If fitted with highly accurate sensors, the system can achieve high precision closed loop control. YVF series motors are suitable for various operation systems where speed regulation is needed, such as light industry, textile, chemistry, metallurgy, crane, machine tool and so on.

Send Inquiry

Product Description

Technical Specifications

Frame size	80-355
Output	0.75kW-355kW
Voltage/frequency	≤1000V/50Hz, 60Hz
Constant Torque/Power Zone	5-50Hz & 50-100Hz
Protection degree	IP55/IP56/IP65/IP66
Insulation/Temp Rise Class	F/B
Mounting arrangements	IM B3/IM B5/IM B35/IM V1
Ambient temperature	-15°C ~ +40°C
Relative Humidity	Less than 90%
Operating Altitude	Lower than 1000 m above sea level
Cooling method	IC416
Duty	S1
Service factor	1.0

Product Capabilities & Options

01Special voltage, frequency and power requirements.

02Custom insulation and protection classes.

03Left-side terminal box, double shaft ends, or special shafts.

04High-temperature or low-temperature motor designs.

05Plateau or outdoor environmental optimization.

06Higher power ratings or specific service factors.

07Built-in heaters, PT100 for bearings/winding, or PTC thermistors.

08Encoders, insulated bearings, or insulated bearing structures.

YVF Series Motor Performance

YVF series motors utilize a squirrel-cage rotor structure and are equipped with a separated axial-flow ventilator. This design ensures an optimized cooling effect across a wide range of operating speeds.

Frequently Asked Questions

What is the output range of YVF series motors?

The YVF series covers a wide output range from 0.75kW up to 355kW, accommodating various industrial power requirements.

Which cooling method is employed for these motors?

These motors use the IC416 cooling method, featuring a separated axial-flow ventilator to maintain effective cooling even at varying speeds.

What are the standard protection and insulation classes?

The standard protection degrees range from IP55 to IP66, and they feature Class F insulation with a Class B temperature rise.

Can the motors be customized for specific environmental conditions?

Yes, we provide specialized designs for high/low temperatures, plateau usage, and outdoor environments as per customer requirements.

What voltage and frequency options are available?

Standard options include voltages up to 1000V at both 50Hz and 60Hz. Special voltage and frequency requirements can also be produced.
