| Standard |
IEC60034-30 |
| Frame size |
80-355 |
| Output |
0.75kW-315kW |
| Efficiency class |
IE4 |
| Voltage/frequency |
≤1000V/50Hz, 60Hz |
| Protection degree |
IP55/IP56/IP65/IP66 |
| Insulation class/Temperature rise class |
F/B |
| Mounting arrangements |
IM B3/IM B5/IM B35/IM V1 |
| Ambient temperature |
-15°C ~ +40°C |
| Relative humidity should be less than 90% |
| Altitude should be lower than 1000 m above sea level |
| Cooling method |
IC411/IC416/IC418/IC410 |
| Duty |
S1 |
| Service factor |
1.0 |
⭐ IE4 Series High-Efficiency Motors

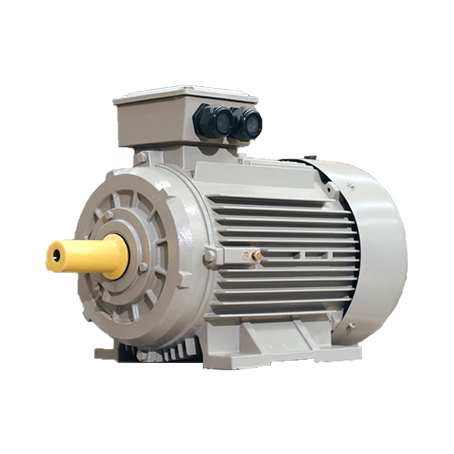

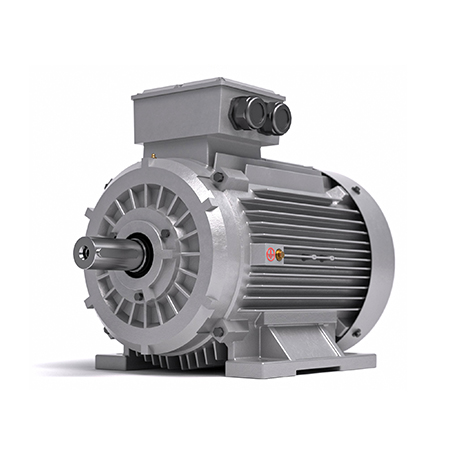

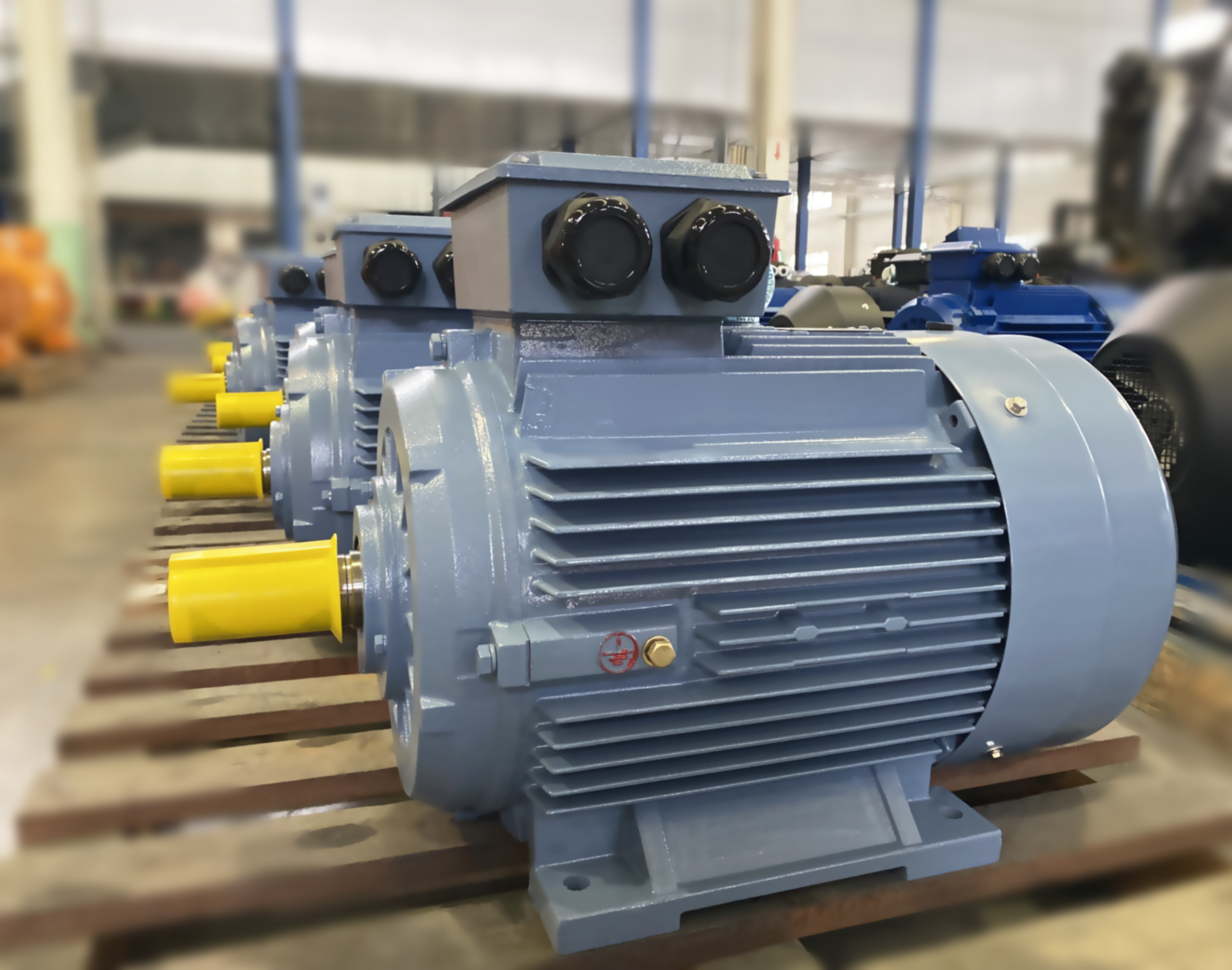

IE4 Series motors are cage induction motors designed in accordance with IEC standards and IE4 energy efficiency requirements.
🛠️ Special Requirements & Customization Options
We can design and produce special motors according to specific customer requirements:
⚙️
Special voltage, frequency, and power ratings
🛡️
Special insulation class and protection class
🔧

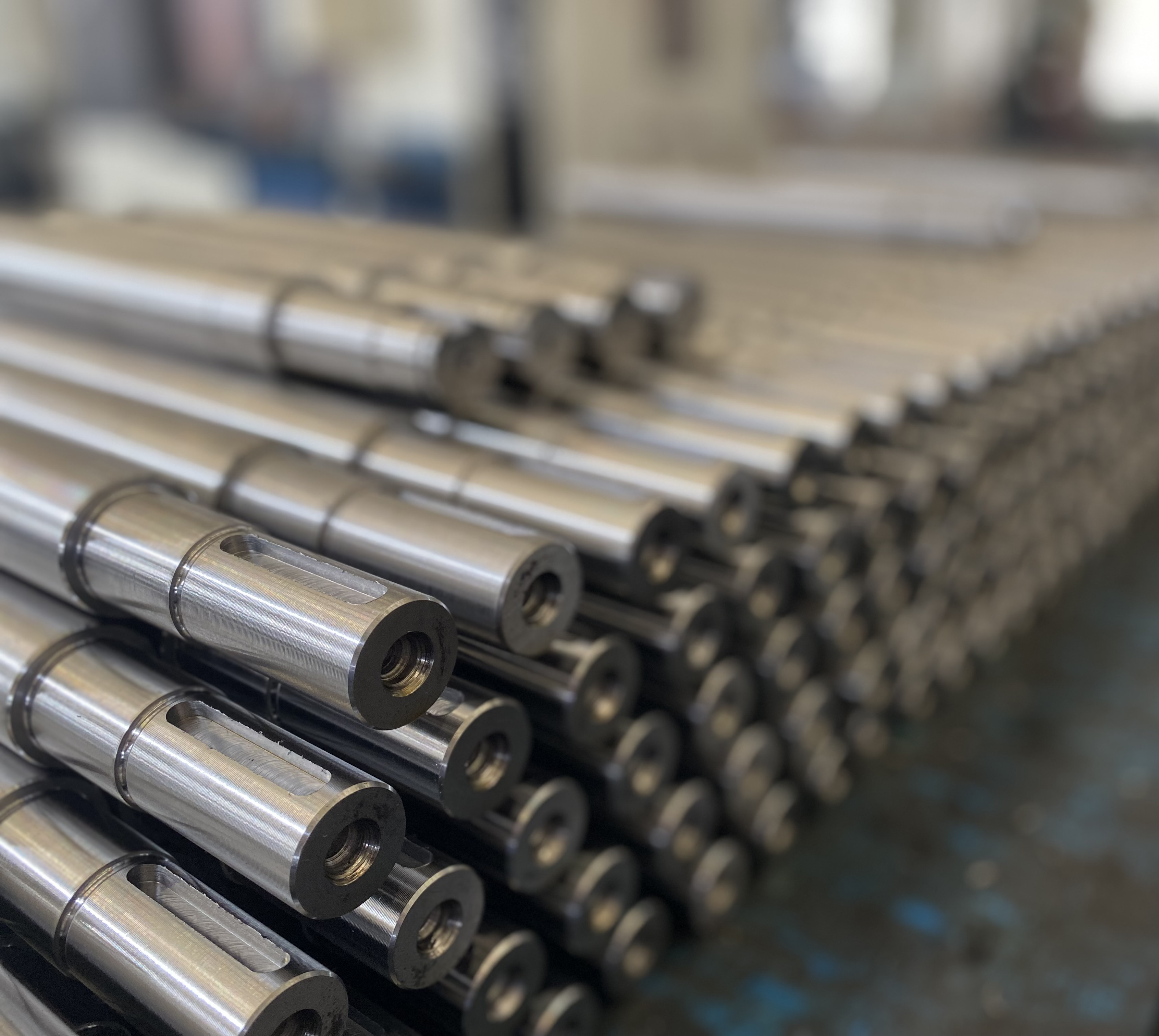

Terminal box on the left side, double shaft ends, or special shafts
🌡️
High-temperature or low-temperature specialized motors
🏔️
Optimized for use on plateaus or outdoor environments
⚡
Higher power or special service factors
🔍
Equipped with heaters, PT100 for bearings/winding, or PTC
🔘
With encoder, insulated bearings, or insulated bearing structures
* This catalogue is only a reference for users. Product specifications may change without prior notice. Please provide detailed rated data when ordering, including motor type, power, voltage, speed, insulation class, protection class, and mounting type.
Frequently Asked Questions
What efficiency standard do these motors meet?
The motors are designed to meet the IE4 energy efficiency class according to IEC60034-30 standards.
What is the output power range for the IE4 series?
The output range spans from 0.75kW to 315kW with frame sizes ranging from 80 to 355.
Can these motors be used in outdoor or high-altitude environments?
Yes, we offer specialized designs for outdoor use and plateau environments. Standard units are rated for altitudes below 1000m.
What protection degrees are available?
We provide multiple protection options including IP55, IP56, IP65, and IP66 to suit different operating conditions.
Are customization options available for specific technical needs?
Absolutely. We can customize voltage, frequency, insulation classes, shaft ends, and add components like encoders, PT100 sensors, or heaters.
What are the standard mounting arrangements?
Common mounting types include IM B3, IM B5, IM B35, and IM V1.
