Explore our specialized range of high-efficiency low voltage industrial motors manufactured to rigorous global specifications.
Shandong Sunvim Motor Co., Ltd. represents the absolute pinnacle of global industrial electric motor research, manufacture, and distribution.
With over 60 years of deep-rooted expertise in electric motor engineering, we have consistently pushed the boundaries of motor ratings, efficiency classes, and rugged configurations. Following a strategic corporate transformation in 2022, we established a high-standard, modernized industrial ecosystem tailored for the future of global industries.
Backed by the immense resources of the Sunvim Group—a multi-billion RMB conglomerate—Shandong Sunvim Motor Co., Ltd. benefits from financial stability, comprehensive R&D infrastructure, and a robust supply network. Our facilities are equipped with over 400 sets of state-of-the-art manufacturing machinery and precision type-testing configurations, enabling an annual production capacity of 3 million kilowatts.
Understanding efficiency, voltage design patterns, and engineering advancements in modern low voltage motors.
Low voltage electric motors (typically defined as operating below 1000V AC, commonly at 220V, 380V, 400V, 460V, or 690V) represent the industrial workhorses of modern manufacturing. Selecting the correct LV Motor Rating requires a deep understanding of duty cycles (S1 to S9), IP classification, and insulation resilience. Modern industrial applications demand high torque densities, variable frequency drive (VFD) compatibility, and compliance with strict MEPS (Minimum Energy Efficiency Standards) globally.
By optimizing electromagnetic design, slot geometries, and rotor bar materials, modern manufacturers can squeeze higher outputs out of smaller frame sizes. For instance, transitioning from traditional cast iron frames to highly optimized rib-cooled frames allows for superior thermal dissipation, maintaining performance even in hostile ambient environments.
Traditional motor designs often prioritized rigid bulk over thermal efficiency. Modern ODM LV motor ratings rely on dynamic finite element analysis (FEA) to minimize structural mass while maximizing magnetic flux density. This results in up to a 15% reduction in frame footprint, directly lowering freight costs and easing integration into tight spaces within OEM assemblies.
As the global community targets carbon neutrality, electric motors—which consume over 60% of all industrial electricity—are subject to strict efficiency regulations. The transition from IE3 to IE4, and now to IE5 Ultra-Premium Efficiency, is no longer optional for premium export markets.
Sunvim's roadmap heavily integrates VFD-optimized insulation systems (Class H with Class F temperature rise limits) to prevent corona discharge and windage failures when operated under high-carrier-frequency PWM (Pulse Width Modulation) inverters.
Discover the high-precision machinery driving our 3 million kilowatt annual manufacturing capability.
Ensures micron-level coaxiality and dimensional accuracy, critical for high-speed operation and preventing premature bearing wear.
Facilitates rapid prototyping and flawless stator/rotor lamination slicing, minimizing eddy current losses in core steel.
Guarantees structural components align strictly with design tolerances, ensuring structural integrity under high torque conditions.
Rigorous full-load simulation, vibration checks, heat runs, and sound pressure analysis to certify motor ratings with complete authenticity.
A timeline of constant adaptation, growth, and industrial dedication spanning over six decades.
Gaomi Electric Appliance Factory was established, laying the foundation of electrical engineering expertise. Later renamed Weifang Electric Machinery Factory in 1988.
Mr. Sun set up Gaomi Towel Factory, the predecessor of Sunvim Group, which evolved into a multi-billion RMB global enterprise.
Sunvim acquired Weifang Electric Machinery Factory, merging massive financial backing with specialized motor manufacturing assets.
A new, modernized factory completed in the Sunvim Industrial Park and was renamed Shandong Sunvim Motor Co., Ltd. to capture new energy demands.
Fully compliant with international marine, industrial, and safety standards to ensure friction-free deployment.
ISO9001:2015
CE
UKCA
UL
SABS
CCS
ABS
DNV
Engineered to perform in the harshest environments across heavy duty applications globally.
Heavy starting torque and high overload capabilities to handle crusher, conveyor, and grinding mill stresses.

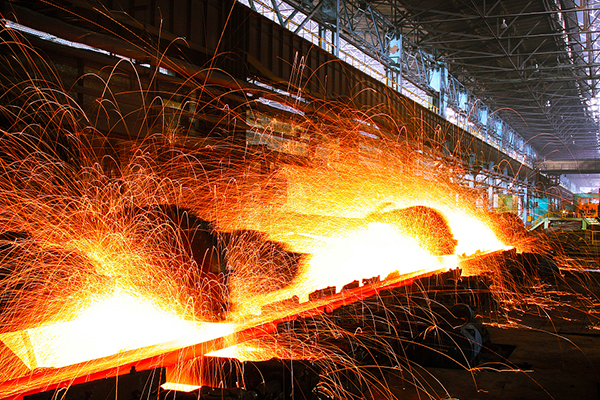

High ambient thermal resistance design (Class H insulation) protecting winding integrity near hot rolling zones.
Aerodynamically optimized fan shrouds and low vibration limits (ISO 10816) for quiet and continuous airflow.
IP55 and IP66 enclosures protecting internal copper windings from continuous moisture and dust ingress.
Certified by CCS, ABS, DNV to resist salt-fog corrosion, high vibration, and marine atmosphere constraints.

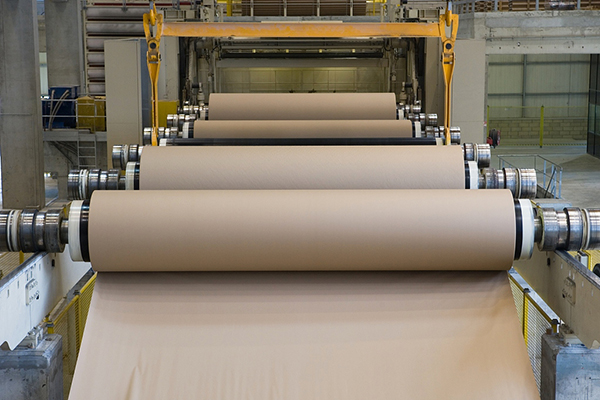

VFD-optimized motors designed to operate reliably under constant moisture and chemical pulp atmospheres.
High starting capability under pressure, tailored torque-speed curves, and compact configurations for packaging.

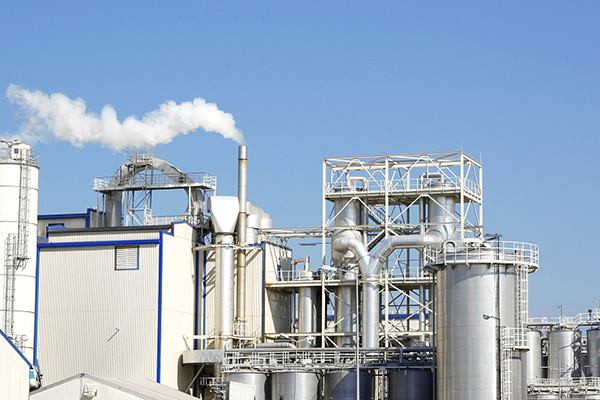

Explosion-proof design compatibility and chemically inert coatings to protect main housing from harsh vapor exposure.
Sturdy auxiliary generator components and pitch/yaw drive motors optimized for severe mechanical duty cycles.
Mitigating Risks and Optimizing Total Cost of Ownership (TCO) for International OEMs.
Purchasing managers and system integrators face increasing pressure to source components that are not only technologically advanced but also financially viable over a long operation horizon. Shandong Sunvim Motor Co., Ltd. addresses this challenge directly via a three-pronged approach: uncompromised material selection, automated high-throughput production, and geographical logistics resilience.
Through our parent conglomerate Sunvim Group, we maintain long-term bulk purchasing contracts for high-grade cold-rolled non-oriented silicon steel (which dictates core hysteresis losses) and 99.99% pure copper conductor wire. This vertical sourcing power shields our international clients from sudden material price fluctuations, guaranteeing that the quoted price remains stable throughout the execution of complex ODM contracts.
We do not merely produce standard motors off the shelf. Our engineering department works hand-in-hand with global buyers to design bespoke solutions, including custom shaft extensions, unique mounting flanges (IEC/NEMA), non-standard terminal box positioning, and integrated dynamic sensors (such as PT100, PTC thermistors, and accelerometers for vibration monitoring).
By pre-integrating vibration and temperature sensors directly into the stator core and bearing housings during the winding and assembly phases, Sunvim's custom ODM motors are natively ready for IIoT (Industrial Internet of Things) deployment. This eliminates the need for expensive post-market retrofits and enables immediate plug-and-play connection to your SCADA systems.
Shipping motors globally requires more than just logistics. Our compliance team handles international clearance, ensuring each motor carries the necessary marking for its destination country, whether it is CE for the European Union, UKCA for the United Kingdom, UL for North America, or SABS for South Africa. Additionally, our comprehensive class society approvals (ABS, CCS, DNV) mean marine vessel designers can integrate our marine-duty auxiliary systems without fear of inspection failures at dockside.
Technical answers to the most common queries from procurement specialists and engineering heads.
When operating a low voltage motor with a Variable Frequency Drive (VFD), you must evaluate the motor's insulation system. VFDs introduce high-frequency voltage spikes (dv/dt), which can degrade standard winding insulation. Sunvim utilizes reinforced Class H insulation systems with vacuum pressure impregnation (VPI) to withstand these stress peaks. Additionally, at low speeds, the self-cooling fan (IC411) becomes less effective, so you may need an independent force-cooling blower (IC416) to prevent thermal overload.
All efficiency claims are verified in our State-Level Type Test Center. We measure loss components using the input-output method under direct load (IEC 60034-2-1 standard). Our engineering controls ensure the quality of rotor laminations, stator coils, and high-precision bearings to minimize windage, friction, and stray load losses, ensuring the motor meets or exceeds its rated efficiency limit over years of operation.
We offer full ODM customization including specific shaft lengths, double-shaft extensions, custom spline profiles, and non-standard keyways. Mounting flanges can be adjusted to meet specific NEMA (C-face, D-flange) or IEC standards. Frame materials can also be customized between high-strength cast iron and lightweight cast aluminum depending on the weight constraints of the application.
Our marine motors are fully certified by international ship classification societies, including DNV (Det Norske Veritas), ABS (American Bureau of Shipping), and CCS (China Classification Society). We offer specialized configurations featuring anti-corrosive coatings, stainless steel shafts, and tropicalized windings to resist salty, humid environments.
Standard motors have a lead time of 3 to 4 weeks. For fully customized ODM solutions—which require initial design reviews, magnetic circuit simulation, and mechanical blueprint confirmation—lead times typically range from 6 to 8 weeks depending on the complexity and volume of the order. Our automated shaft machining and winding lines allow us to maintain fast turnaround times even for complex orders.
For motors with higher ratings or those operating in critical systems, we embed PTC thermistors or PT100 RTD sensors directly into the stator windings (typically 3 sensors, one per phase) and bearing housings. These sensors connect to your external protective relays to trigger alarms or automatic shutdowns if temperatures exceed safe limits.
Browse the remainder of our advanced product portfolio for heavy engineering and marine integration.
